The Hyundai IONIQ 9 is a fully electric three-row SUV built on the E-GMP platform. It measures 5,060 mm in length, 1,980 mm in width, and 1,790 mm in height, with a wheelbase of 3,130 mm. The cabin is configured for either six or seven passengers, offering a flat floor layout and sliding Universal Island 2.0 console. The second-row seats can swivel to face the third row, and Relaxation Seats are available for the first and second rows, offering full recline and leg rest functions. The combined second- and third-row legroom measures 2,050 mm, while headroom reaches 1,899 mm. Trunk space reaches 1,323 liters with the third row folded, and 620 liters with all seats upright. The front trunk provides 88 liters of storage on RWD models and 52 liters on AWD models.
The vehicle uses a 110.3 kWh lithium-ion battery, placed under the floor. In terms of range, the Long-Range RWD variant with 19-inch wheels is projected to deliver up to 620 km (WLTP) or 335 miles (EPA). The charging system supports both 400V and 800V multi-charging. With a 350 kW charger, the battery can be charged from 10% to 80% in about 24 minutes. The Vehicle-to-Load (V2L) function allows external appliances to draw power from the car’s battery.
Launch
The Hyundai IONIQ 9 is scheduled to go on sale in Korea and the United States in the first half of 2025. Sales in Europe and other global markets will follow later. Hyundai has confirmed that the IONIQ 9 will be available with both standard equipment and optional upgrades across various regions. Final specifications and trims will be announced closer to each regional market launch.
Platform, Chassis and Powertrain
The IONIQ 9 rides on Hyundai Motor’s Electric Global Modular Platform (E-GMP), using a flat floor design to increase space for passengers and cargo. The platform incorporates a high-voltage battery rated at 110.3 kWh. The Long-Range RWD model is powered by a single rear motor that produces up to 160 kW or approximately 214 hp with 350 Nm of torque. The Long-Range AWD variant adds a 70 kW (94 hp) front motor alongside the 160 kW rear motor, delivering a combined output of approximately 306 hp and 605 Nm of torque. The Performance AWD model has dual 160 kW (214 hp) motors on both axles, providing a total output of 428 hp and 700 Nm.
Acceleration times vary by configuration. The Performance AWD model can go from 0 to 100 km/h in 5.2 seconds, while the Long-Range AWD takes 6.7 seconds, and the Long-Range RWD does it in 9.4 seconds. Mid-range acceleration from 80 to 120 km/h takes 3.4 seconds for the Performance AWD, 4.8 seconds for the Long-Range AWD, and 6.8 seconds for the Long-Range RWD. Towing capacity is 2,500 kg for European models and 5,000 lbs for North American models.
Technology Features

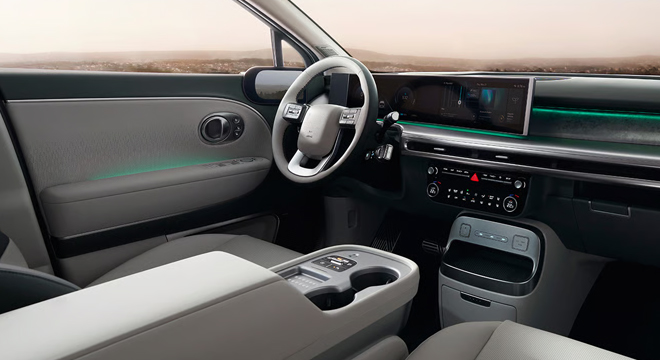

The IONIQ 9 is equipped with a 12-inch digital cluster and a 12-inch infotainment screen, forming a panoramic curved display. The vehicle offers Hyundai’s AI Assistant, a voice-controlled feature activated by a dedicated button. The infotainment system includes wireless software updates, real-time energy usage reports, and an EV route planner. Streaming services such as Amazon Music and Soundcloud are available via Features on Demand (FoD), along with dynamic lighting patterns and custom display themes.
Other features include Bluelink® Connected Car Services, digital key with NFC, 100W USB-C ports across all three rows, a fast wireless charging pad with a cooling fan, and an in-car UV-C sterilizer for small personal items. The vehicle supports dual-zone climate control with independent rear functionality for optimized energy use. A column-type shift-by-wire system is integrated with the start button, while the Chassis Domain Control Unit includes torque vectoring and terrain recognition.
Exterior

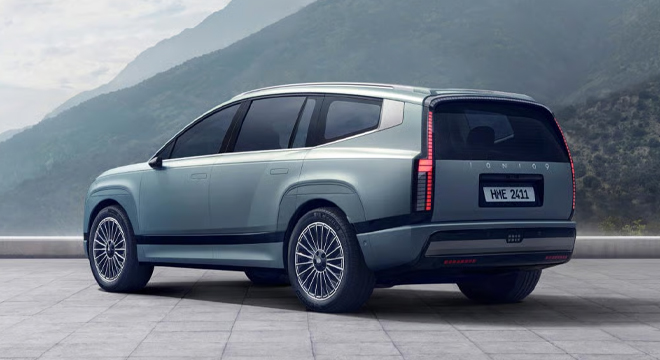

The exterior of the IONIQ 9 features a low drag coefficient of 0.259 when fitted with digital side mirrors. Hyundai applied an "Aerosthetic" design strategy that includes a curved roofline, 3D-shaped underbody cover, dual-motion active air flaps, hidden antennas, and flush door handles. The vehicle uses aluminum fenders and quarter panels to reduce weight, and its silhouette incorporates smooth surfaces with rising lower lines for aerodynamic balance.

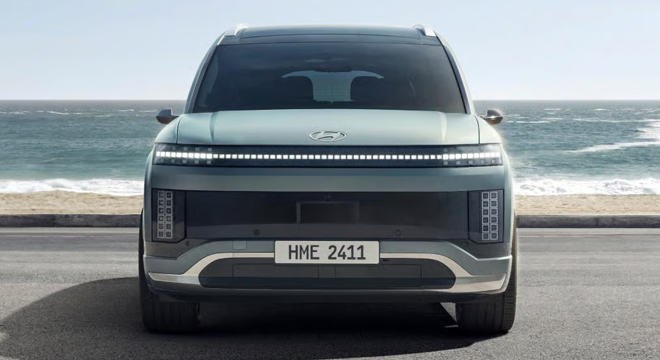

Lighting includes Parametric Pixel LED headlamps, an intelligent front-lighting system (IFS), and full-width rear LED lamps. Door handles have indirect lighting for better visibility at night. The SUV is offered with 19-, 20-, and 21-inch wheels, including a top-spec 21-inch Calligraphy design. There are 16 exterior colors, including new options like Celadon Gray Matte, Sunset Brown Pearl, and Cosmic Blue Pearl.
Interior

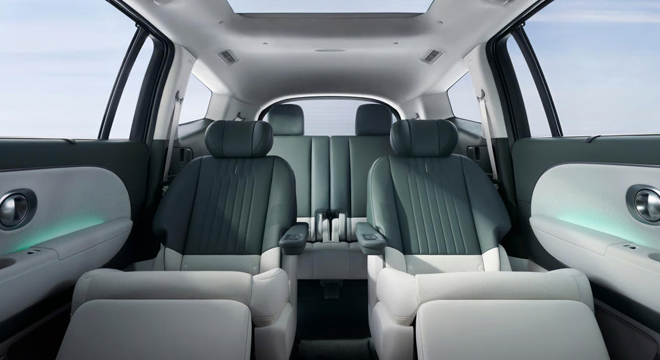

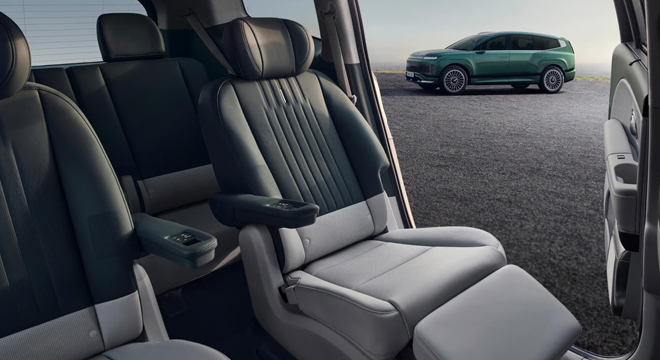

Inside, the IONIQ 9 uses a flat-floor layout with seating for six or seven, depending on trim. The Relaxation Seats in the first and second rows include leg rests and a Dynamic Body Care system with pressure and vibration massage functions. Second-row seats can swivel to face the third row while parked. Universal Island 2.0 provides 5.6 liters of upper tray storage and 12.6 liters in the sliding tray, with front and rear access.
Interior material choices include Eco Process Leather, Recycled PET, Wool Fabric, Bio PU, and paint made from recycled tire waste. There are seven color combinations including Obsidian Black, Dark Wine + Dove Gray, and Mud Gray + Creamy Beige. Additional features include ambient lighting, slim roof air vents, and acoustic laminated glass for sound insulation. An optional BOSE 14-speaker sound system supports 5.1-channel surround audio and virtual EV sound (e-ASD).
Safety
The IONIQ 9 includes a full set of structural and electronic safety features. It is equipped with a reinforced A-pillar, a rolling-type pin-lift door hinge for better fitment, and a newly developed electric hood latch. The body design improves crash energy distribution and reduces noise, vibration, and harshness (NVH).
Digital Side Mirrors are available in select markets, offering zoom, lane assist lines, and wide-angle views via 7-inch OLED screens. Active Noise Control-Road (ANC-R) helps reduce tire and road noise. The braking system has been improved for better stopping power and includes haptic feedback when reversing. Additional drive aids include auto terrain mode with AI-based surface recognition, lateral wind stability control, and dynamic torque distribution.
Hyundai IONIQ 9 Variant and Pricelist
View our pricelist table and select a variant to view further specifications.
Add To Comparison
Hyundai IONIQ 9 Specifications
Key specifications & features of the Hyundai IONIQ 9. View engine specs, dimensions, safety and technology features in our full variant pages.
Body Type
SUV
No. of seats
6
Energy Source
Electric
Transmission
Automatic
Max Output (hp)
304 hp
Drivetrain
All Wheel Drive
Wheel Size
21 in
Airbags
8
*Depending on variant
ISOFIX
Available
Front Parking Sensors
Available
Rear Parking Sensors
Available
Connectivity
AM and FM + Apple Carplay + Android Auto + Bluetooth with Voice Recognition
*Depending on variant
